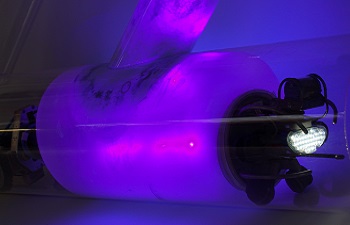

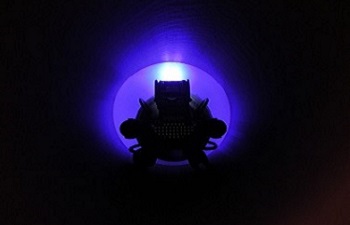

UV-LED Equipment



The TopHat rather the Hat Profile from Cosmic is manufactured from UP-Resign-impregnated Glass fibre laminate. A Paste

Mehr…

(=Epoxy resign procurer) warrants a permanent Adhesion to the wet channel (crossover). The Laminates will be delivered as “Prepreg”. The Company produces Laminates which are storable for 4 months. There can be renovated T- (90°) as well as Y-connections (45°) with the same Primary Material. The working area in the Main pipe: DN 100-900 and in the Lateral: DN100-200. After the fitting with the Renovation Robot and the Upend with compressed Air the Curing occurs in only 10 minutes. Also there claims the manufacturer an absolutely leading position.

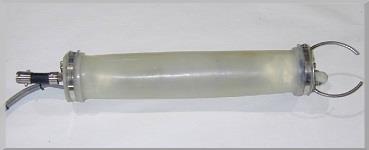

The Top Hat Short liner is the same material as the Hat, but it is produced as a Flatware in 35m length and 0,5m, 1m and 1,25m width. With an installation length in the Channel from 0,5m, 1m and 1,25m and a Curing of only 10 minutes Cosmic also takes a leading position. For longer repairing sections a few Short liners can be installed in a row, due to the short clock cycle.

Weniger…

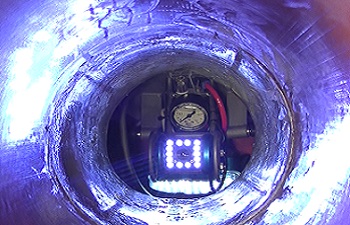

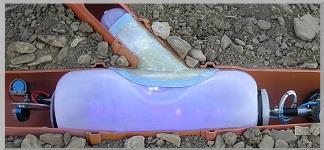

Using the Hat-technology, connections in the sewer system are rehabilitated durably. Therefor we use seamless glass fiber laminate raising the resistance and the lifespan. To do so, the rehabiliation robot is equipped with a Hat-appliance. The working range of this appliance contains the diameter 150 to 600 mm in the main pipe and 100 to 200 mm in the house connections



Damaged spots in the area of the sockets, longitudinal cracks or breakouts in the pipe are rehabilitaded with GFK-laminates. The working range contains the diameter from 150 to 600 mm in the main pipe and 200 mm in the house connections.

The Laminates will be delivered as “Prepreg”



UV control box with text overlay
